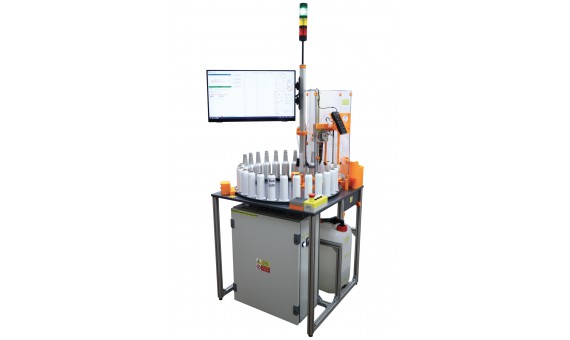

Automatic enamel rater measures the porosity of aerosol cans' inner coating and is fully compliant with FEA 651 standards.

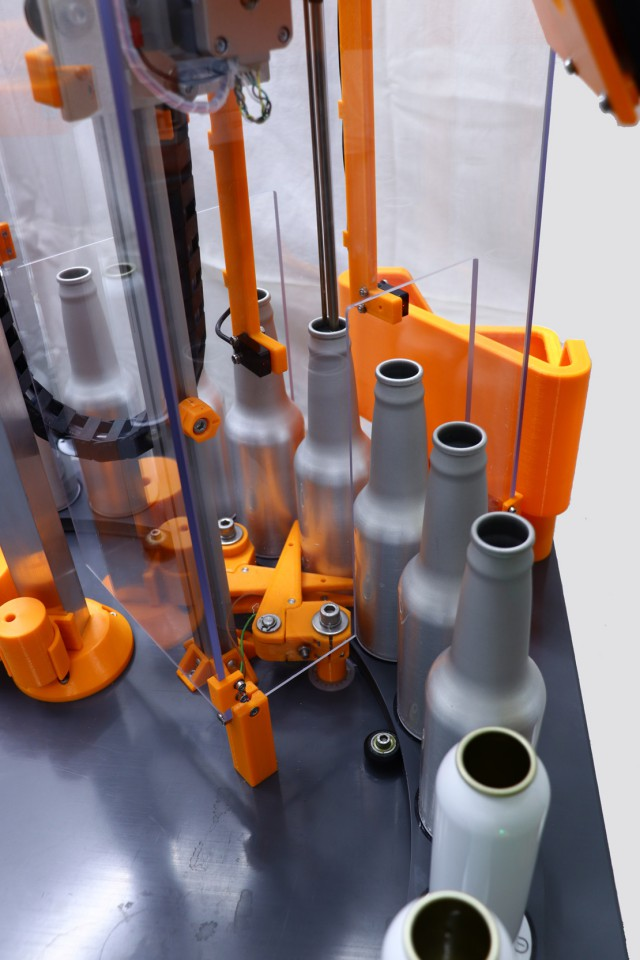

It features a universal measuring position, enabling accurate measurements for various can shapes.
Set-up Options:
Freestanding – the automatic enamel rater can send data directly to your information system
Integrated with our MASA (Measuring and Statistic Application) – data are processed by MASA MES (Manufacturing Execution System) developed by our company
The process is automated to enhance efficiency and accurac
Measure up to 27 cans per cycle at a speed of 2 cans per minute
Machine-operator communication is provided by our proprietary Unimeter application (used to set measurement parameters, visualize process)
|
Can parameters [mm] |
||
|
MAX |
Body diameter - 65 |
Height - 250* |
|
MIN |
Throat diameter - 19 |
Height - 58 |
*possible enlargement
Log in, set the measurement position, and the automatic enamel rater does the rest.
Precise Liquid Filling
Time-Saving for Operators
Easy Handling
Automatic calibration of measuring voltage and current
Adjustable reference source of 3 V - 13 V
Current measurement resolution 0.01mA
Current measurement accuracy 2% of the range
Automatic contact detection through the enamel by cross checking
Adjustable electrolyte level
Adjustable travel and fill speeds
Control solution canister volume is 20 litres
Machine weight 82 kg
Machine dimensions 740 x 740 x 1929 mm (w, d, h)
